Byron RS3 Codes

15 replies [Last post]
EJ-Ambient
Offline
Ringwood, United Kingdom
Joined: 5 Aug 2011

Hi All -

I've just been given a load of these (Byron RS3 3000W power switch) - I think they're HomeEasy, but the old type with the pinwheel selector (choices are A-1, A-2, A-3 then B-1,B-2 etc to D-3).... are they compatible with the HAH Rf and can you point me at the relevant codes (I've looked in the wiki but there's no mention of Byron stuff and the HomEasy is for the learning modules!!).

Looking forward to being able to turn the kettle on from up in the office!!!!

EJ

derek
Offline
Glasgow, United Kingdom
Joined: 26 Oct 2009
Possibly not decoded yet

AFAIK, these haven't been decoded as yet. Do you have a transmitter unit? If it's an HE200 part, I think that the protocol may well be different from the HE units mentioned on the wiki.

... and watch out when turning on kettles via remote control. You would need some sort of 'kettle not empty' sensor before switching on.

BoxingOrange
Offline
United Kingdom
Joined: 11 Jun 2010
Kettle Empty?

Shouldn't that be "Kettle Empty!", if it's not empty you can boil it.

EJ-Ambient
Offline
Ringwood, United Kingdom
Joined: 5 Aug 2011
Boolean what?

So its not 'Kettle Empty" = true..... and we know its full 'cos muggins has to fill it the night before!

Anyway - I have a Byron RS14 remote controller which works with the RS3 kettle killers..... looking further it appears that HomeEasy are re-badge Byron kit!!!!

I can provide a remote controller and an RS3 for disection if that's what's required - if all other avenues prove fruitless.....

EJ

BoxingOrange
Offline
United Kingdom
Joined: 11 Jun 2010
Decoding

If you don't get anywhere with this I could have a go at decoding it for you.  I'll need to take the transmitter apart and attach probes to the circuit, so there is a rick it might get broken, however, I've done a couple now without breaking one.  So if you're happy to pay postage and accept the risks I can give it a go.

EJ-Ambient
Offline
Ringwood, United Kingdom
Joined: 5 Aug 2011
Take a look

Hi Karl

I'm surprised that this type hasn't been decoded - I thought it was the most available (certainly our B&Q has shed loads at one time)!!

What do you need?  As I mentioned I've got a controller and a remote - do you need both?

EJ

BoxingOrange
Offline
United Kingdom
Joined: 11 Jun 2010
What's needed

So to me, controller and remote are the same.  I need the remote control unit which controls the socket, and the socket.  Sorry to be pedantic, I just want to make sure we're talking about the right thing, any documentation might also be useful.

Why not send me a picture before you post it, and I can "see" if there's anything else,

Karl

kevin9
Offline
Lincolnshire, United Kingdom
Joined: 24 May 2010
Looking at the range, it does

Looking at the range, it does look like a cross between the Home Easy stuff and the ByeBye Standby range, not suprising since these were both made by Byron.

Could you post pics of the front and back of the remote and plug?, the back so we can see the label/partno

kevint

EJ-Ambient
Offline
Ringwood, United Kingdom
Joined: 5 Aug 2011
Front and Back

Thanks for the quick replies - and here's my attempt at being David Bailey with a phone!!!!

Four files - titles say it all....



Cheers.... ;-) EJ

AttachmentSize

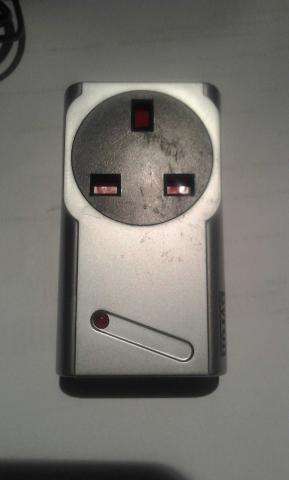

Socket - Front.jpg 12.17 KB

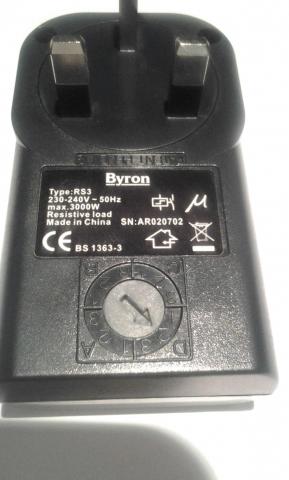

Socket - Back.jpg 19.43 KB

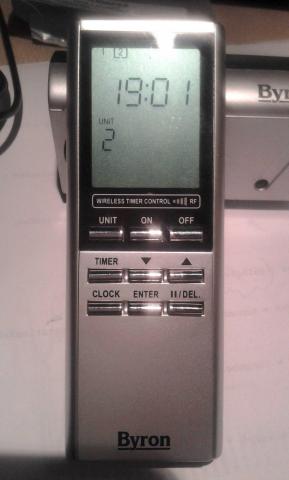

Remote Control - Front.jpg 16.17 KB

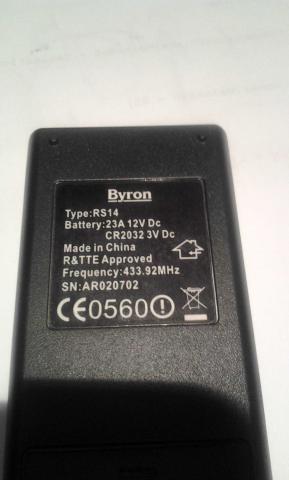

Remote Control - Back.jpg 15.64 KB
kevin9
Offline
Lincolnshire, United Kingdom
Joined: 24 May 2010
Well the remote looks

Well the remote looks identical to my HE200 (and if SN stands for serial number then we have the same serial number ;) ).

HE200 Silver front    HE200 Silver back

Derek has indicated above that the HE200 uses different coding, but it is entirely possible that the sockets will respond to BBSB or HE codes? You dont have BBSB or basic HE remotes by any chance?

Since it has a rotary selector switch I guess it is more likely to be like the BBSB than HE. Have you tried http://www.dbzoo.com/livebox/universalrf and in particuar the BBSB section of http://www.dbzoo.com/public/rf-helper.html?

How many different protocols can  these people make up?

kevint

EJ-Ambient
Offline
Ringwood, United Kingdom
Joined: 5 Aug 2011
Wheeee!

Thanks for the info - it's a BBSB in drag!!

Found the RF Helper section a dream - got all the little bu##ers coded up and working from the Joggler!!!

Minor problem - on the GUI, I've tried to add more RF Devices but every time I try and increment the value in the RF Devices box and then save settings - it all reverts back to 4!  I must be doing something silly - can you point out my error?

I see many a happy hour ahead turning things off that have been 'inadvertently' left on - scheduling washing so that it can only be done when there's megaWatts coming in off the PV array....etc...

Thanks again.....

EJ

PS We got down to -6.6C last night.....what was it like round your way?

garrydwilms
Offline
United Kingdom
Joined: 31 Mar 2011
Not sure but

I have found the GUI sometimes doesn't update the Ini file correctly but have assumed this was due to me having modded it manually over time. If you are having trouble i suggest you just alter the Ini file manually, it's quite straight forward once you open it up you'll see the format to use! /etc/xap-livebox.ini Anyone else having GUI to Ini issues recently?! Garry

g7pkf
Offline
United Kingdom
Joined: 11 Jan 2011
Ditto

Most of the time i just mod the ini directly using the editor buit into winscp.



DO A BACKUP FIRST



my Joggler min/max connected to a jeenode out side measured -9.8, my wxstn measured -9 and the mercury min/max showed -10.



It was cold

g7pkf
Offline
United Kingdom
Joined: 11 Jan 2011
PVarray

the script pvoutput works a dream my immersion is on as i type, trouble with switching on devices that use aALOT of eleccy is take washing mc once its on you have to leave it on.



same with dishwasher.



My immersion can stand being switched on/off and it uses 750Watts-still got to mod it slightly to switch diodes out when i am generating over 2.5Kw so immersion would run at 1.5Kw-all free eleccy :)



Dean

kevin9
Offline
Lincolnshire, United Kingdom
Joined: 24 May 2010
Wiki Updated

I have updated the wiki with a note about Byron RS3 and BBSB codes

http://www.dbzoo.com/livebox/universalrf?&#bye_bye_standby

kevint





EJ-Ambient
Offline
Ringwood, United Kingdom
Joined: 5 Aug 2011
What a team....

Thanks....all grist to the mill..... EJ
