RoomNode Temperature suddenly broadcasting negative figures?

18 replies [Last post]
DoubleSpeed
Offline
Bristol, United Kingdom
Joined: 31 Mar 2012

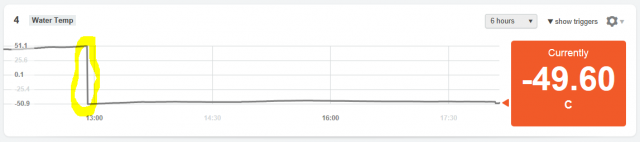

Today ‘out of the blue’ the temperature sensor from my RoomNode switched from Positive to Negative values please see the attached 2 screen shots, I’ve tried removing the batteries from the RoomNode to see if this might reset it, it hasn’t so far. Can anyone help/advise?
AttachmentSize
Cosm.png45.62 KB

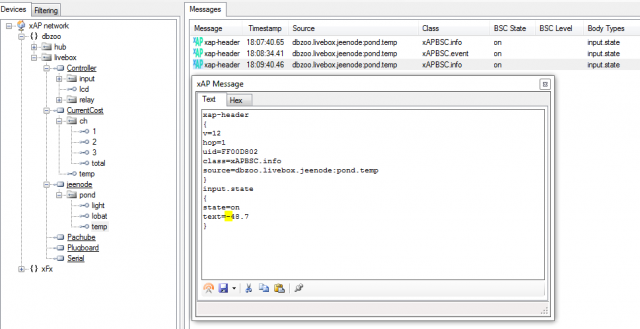

xAP.png115.06 KB
DoubleSpeed
Offline
Bristol, United Kingdom
Joined: 31 Mar 2012

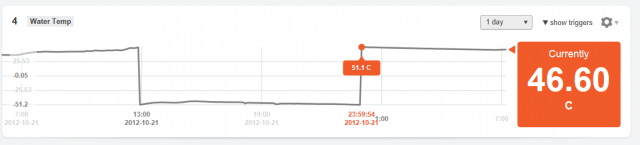

and now it's flipped back
and now it's flipped back 'out of the blue' at a few seconds before midnight last night, seems to have a mind of its own see the attached screen shot. any ideas???
AttachmentSize
Cosm-2.PNG 44.5 KB
g7pkf
Offline
United Kingdom
Joined: 11 Jan 2011
Found the problem and a soloution

Check out this thread :)



http://www.homeautomationhub.com/content/temperature-measurement-hahnodes



I cannot figure out how to upload files to here so download



http://www.packetradio.co.uk/jeenode0to100.zip



and put the contents (after unzipping) into \etc\plugboard



seems ok on my setup (which is the same as yours as i sent you my jeenode applet. (but my sensor never goes over 50 as i cannot get it close enough to the middle of the tank :()

DoubleSpeed
Offline
Bristol, United Kingdom
Joined: 31 Mar 2012
Thanks trying this now!

Thanks trying this now!

g7pkf
Offline
United Kingdom
Joined: 11 Jan 2011
Tried it on my system nd it went negative

anyone shed any light?

boilernode.lua

--[[  boilernode.lua

   Use in conjuction with the RoomNode JeeNode sketch.
   Copyright (c) Brett England, 2011

   No commercial use.
   No redistribution at profit.
   All derivative work must retain this message and
   acknowledge the work of the original author.
--]]
module("boilernode", package.seeall)

require("xap.bsc")
jeenode = require("xap.jeenode")
Nodule = jeenode.Nodule
class = require("pl.class").class

class.BoilerNode(Nodule)

-- create BSC endpoints
function BoilerNode:build(...)
   Nodule.build(self, ...)

   -- Creates the endpoints: self[key] as in self.light, self.moved etc..
   -- If the user has configured that they want them that is.
   self:add {key="light", direction=bsc.INPUT, type=bsc.STREAM}
   self:add {key="moved", direction=bsc.INPUT, type=bsc.BINARY}
   self:add {key="humi", direction=bsc.INPUT, type=bsc.STREAM}
   self:add {key="temp",  direction=bsc.INPUT, type=bsc.STREAM}
   self:add {key="lobat", direction=bsc.INPUT, type=bsc.BINARY}
end

function BoilerNode:process(data)
--[[
-- From the RoomNode.pde Sketch
struct {
    byte light;     // light sensor: 0..255
    byte moved :1;  // motion detector: 0..1
    byte humi  :7;  // humidity: 0..100
    int temp   :10; // temperature: -500..+500 (tenths)
    byte lobat :1;  // supply voltage dropped under 3.1V: 0..1
} payload;
--]]
   local li, mo, hu, te, lo = jeenode.bitslicer(data,8,1,7,10,1)
   te = te  / 10
   -- The keys here must match the key values from the self:add{key=x}
   Nodule.process(self,{light=li,moved=mo,humi=hu,temp=te,lobat=lo})
end



jeenode.lua



--[[
    JeeNode to xAP Endpoint mapping
--]]

--_DEBUG=1
module(...,package.seeall)

monitor = require("xap.jeenode").monitor
RoomNode = require("xap.roomnode").RoomNode
BoilerNode = require("boilernode").BoilerNode
OutputNode = require("xap.outputnode").OutputNode
IRNode = require("xap.irnode").IRNode

info={
   version="2.0", description="JeeNode"
}

local jeemon={
      port="/dev/ttyUSB0",
      baud=57600,
      stop=1,
      databits=8,
      parity="none",
      flow="none"
}

-- Keyed by NODE ID
local nodes = {
   [2] = RoomNode{base="dbzoo.livebox.jeenode:pond", endpoints={light=1,temp=1,lobat=1}, ttl=1800},
}

function init()
   monitor(jeemon, nodes)
end

kim
Offline
Throwleigh, United Kingdom
Joined: 1 Dec 2010
Here's mine that works

Feed 6 on https://cosm.com/feeds/13194?pachube_redirect=true - should really be called tank node - 'cos its measuring

hot water tank not the boiler temp.

I have two luas in plugboard - called "boilernode" and "jeenodeApplet.lua"

Note this is running off a second livebox as you can see by the "target="dbzoo.livebox.2.serial" - in the jeemon section of

the jeenodeApplet.lua file

1. boilernode.lua contains:

------------------------------------------------------------------------------



--[[ $Id: roomnode.lua 269 2011-09-07 19:35:56Z dbzoo.com $



   Use in conjuction with the RoomNode JeeNode sketch.

   Copyright (c) Brett England, 2011



   No commercial use.

   No redistribution at profit.

   All derivative work must retain this message and

   acknowledge the work of the original author.

--]]

module("boilernode", package.seeall)



require("xap.bsc")

jeenode = require("xap.jeenode")

Nodule = jeenode.Nodule

class = require("pl.class").class



class.BoilerNode(Nodule)



-- create BSC endpoints

function BoilerNode:build(...)

   Nodule.build(self, ...)



   -- Creates the endpoints: self[key] as in self.light, self.moved etc..

   -- If the user has configured that they want them that is.

   self:add {key="light", direction=bsc.INPUT, type=bsc.STREAM}

   self:add {key="moved", direction=bsc.INPUT, type=bsc.BINARY}

   self:add {key="humi", direction=bsc.INPUT, type=bsc.STREAM}

   self:add {key="temp",  direction=bsc.INPUT, type=bsc.STREAM}

   self:add {key="lobat", direction=bsc.INPUT, type=bsc.BINARY}

end



function BoilerNode:process(data)

--[[

-- From the RoomNode.pde Sketch

struct {

    byte light;     // light sensor: 0..255

    byte moved :1;  // motion detector: 0..1

    byte humi  :7;  // humidity: 0..100

    int temp   :10; // temperature: -500..+500 (tenths)

    byte lobat :1;  // supply voltage dropped under 3.1V: 0..1

} payload;

--]]

   local li, mo, hu, te, lo = jeenode.bitslicer(data,8,1,7,10,1)

   te = te  / 10

   -- The keys here must match the key values from the self:add{key=x}

   Nodule.process(self,{light=li,moved=mo,humi=hu,temp=te,lobat=lo})

end

------------------------------------------------------------------------------

.... and jeenodeApplet.lua contains:

------------------------------------------------------------------------------



--[[

    JeeNode to xAP Endpoint mapping

--]]



--_DEBUG=1

module(...,package.seeall)



monitor = require("xap.jeenode").monitor

RoomNode= require("xap.roomnode").RoomNode

BoilerNode= require("boilernode").BoilerNode



info={

   version="2.0", description="JeeNode"

}



local jeemon={

      target="dbzoo.livebox.2.serial",

      port="/dev/ttyUSB0",

      baud=57600,

      stop=1,

      databits=8,

      parity="none",

      flow="none"

}



-- Keyed by NODE ID

local nodes = {

   [2] = RoomNode{base="dbzoo.livebox.2.jeenode:test",

                  endpoints={temp=1,light=1,lobat=1,moved=1}, ttl=360},



   [3] = BoilerNode{base="dbzoo.livebox.2.jeenode:util",

                  endpoints={temp=1,light=1,lobat=1,moved=1}, ttl=360},







}



function init()

   monitor(jeemon, nodes)

end

----------------------------------------------------------------------------------------------------

So it looks like you need the extra Node ID definition.
Hope that helps - still very much learning at this end
Regards
Kim









DoubleSpeed
Offline
Bristol, United Kingdom
Joined: 31 Mar 2012
OK I have one RoomNode with
OK I have one RoomNode with the temperature sensor attached to my water cylinder and I am using the "boilernode.lua" and "jeenodeApplet.lua" however it's not working for me, today when the temperature hit 51 degrees the reading went to a negative (-) value can anyone help me troubleshoot this issue? A separate but connected issue I'm pretty certain that the temperature sensor itself isn't reading the temperature correctly either it there a way of calibrating the readings from the sensor?
DoubleSpeed
Offline
Bristol, United Kingdom
Joined: 31 Mar 2012
Can anyone assist me with
Can anyone assist me with this?
g7pkf
Offline
United Kingdom
Joined: 11 Jan 2011
F.A.O Kim

Kim i read your reply but did not really understand it? what should i add?



I think that it could be caused by a "naming" thing-testing this now by having the same contents of LUA with 3 different names in plugboard  BoilerNode.lua boilernode.lua and boilerNode.lua



and tidied up my jeenode.lua (copied below)





--[[
    JeeNode to xAP Endpoint mapping
--]]

--_DEBUG=1
module(...,package.seeall)

monitor = require("xap.jeenode").monitor
RoomNode = require("xap.roomnode").RoomNode
BoilerNode = require("boilernode").BoilerNode


info={
   version="2.0", description="JeeNode"
}

local jeemon={
      port="/dev/ttyUSB0",
      baud=57600,
      stop=1,
      databits=8,
      parity="none",
      flow="none"
}

-- Keyed by NODE ID
local nodes = {
   [2] = RoomNode{base="dbzoo.livebox.jeenode:pond", endpoints={temp=1,light=1,lobat=1}, ttl=1800},
}

function init()
   monitor(jeemon, nodes)
end

g7pkf
Offline
United Kingdom
Joined: 11 Jan 2011
still goes -ve assistance reqd?

.

DoubleSpeed
Offline
Bristol, United Kingdom
Joined: 31 Mar 2012
As Brett wrote the original

As Brett wrote the original can we ask Brett to help on this, it's a real pain when the readings switch to negatives?

brett
Offline
Providence, United States
Joined: 9 Jan 2010
Sorry I've not been around

Sorry I've not been around much lately.. Busy moving house (AGAIN!) should be all done by this time next week.

I'm pretty sure you are hitting the 10bit boundary that is reserved for the room nodes, which will happen once you go above 51.2 degrees.  For a room this isn't an issue as I doubt anybody is going to heat themselves up this much but if you are using it to monitor a boiler then you need to use the modified BoillerNode that works around this limitation.  So as to go from 0 -102.4 degrees instead.

Alternatively we reflash the roomnode and increase the bit precision AND the LUA module to suit and create a new Node type so as not to disrupt existing installations.

Update: To be clear the bug an be fixed by modifying the LUA decoder. You can workaround this limitation.  I already did this for Kim and documented how to go about installing the new "BoilerNode.lua" which is a modified "RoomNode.lua" are we having problems using this?  Because this is the way around this problem.

Brett

brett
Offline
Providence, United States
Joined: 9 Jan 2010
g7pkf let me explain this

g7pkf let me explain this line.

BoilerNode = require("boilernode").BoilerNode

This create a BoilderNode VARIABLE (which is a class reference) from the file "boilernode.lua" using the Class inside that file BoilerNode.  So you only need a file called "boilernode.lua" on your system - remove the others.

You then need to USE this BoilerNode, or constructor in technical terms, to set the appropriate endpoint.

local nodes = {
   [2] = BoilerNode{base="dbzoo.livebox.jeenode:pond", endpoints={temp=1,light=1,lobat=1}, ttl=1800},
}

Its just like that.   You did no use the NODE in your code you continue to use the RoomNode --- note the BUG is in the roomnode.lua decoder which is why you replace your RoomNode endpoints with BoilerNode endpoints..

Brett

g7pkf
Offline
United Kingdom
Joined: 11 Jan 2011
Thanks Brett

One small word can make all the differance :)



Double speed just cange the node at the bottom of the roomnode.lua.



seems to not fail but i am away so cannot test if it goes -ve?



sorry

DoubleSpeed
Offline
Bristol, United Kingdom
Joined: 31 Mar 2012
Are you saying change...

Are you saying change...



   [2] = RoomNode{base="dbzoo.livebox.jeenode:immersion", endpoints={light=1,temp=1,lobat=1}, ttl=1800},

to...





   [2] = BoilerNode{base="dbzoo.livebox.jeenode:immersion", endpoints={light=1,temp=1,lobat=1}, ttl=1800},

?





DoubleSpeed
Offline
Bristol, United Kingdom
Joined: 31 Mar 2012
Thought I try the above

Thought I try the above anyway and it seems to be working after rebooting my HAH reading went from -47 to +55.3 so looking good!!

Thanks all!!

g7pkf
Offline
United Kingdom
Joined: 11 Jan 2011
Yes

So it now looks at the Boilernode lua not roomnode lua for data (thats as i understand it anyway)

kim
Offline
Throwleigh, United Kingdom
Joined: 1 Dec 2010
sorry ....

.... I have been on hols with no wifi so have missed all the fun.  Glad you got it going.



Kim

DoubleSpeed
Offline
Bristol, United Kingdom
Joined: 31 Mar 2012
Nice dashboard for my iPad!

Yep all working great now and I now have a great dashboard for my iPad...

http://open.sen.se/sensemeters/tab/2241/
